제품명 3M™ Dyneon™ PTFE TF 9207Z
용도 내마모첨가제, PTFE
기타 25kg Box.

3M™ Dyneon™ PTFE TF 9207Z

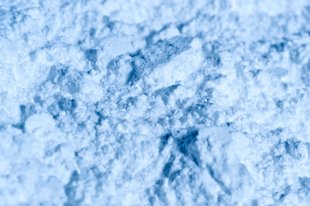

Micropowder









A low molecular weight PTFE micropowder used as an additive to improve non-stick properties, reduce coefficient of friction, and increase wear resistance of the matrix material.
  • Low molecular weight PTFE produced by thermal degradation
  • Rigid particle morphology
  • Used as an additive to: Improve non-stick
  • Properties, reduce coefficient of friction, and increase wear resistance of Matrix material.


Typical Properties

Average Particle Size 4
Bulk Density 280
Capabilities Increased Production Throughput
Industries Paints and Coatings, Rubber and Plastic




Processing recommendations
​
Dyneon TF PTFE micropowders can be used as additives in many different applications and at concentrations typically from 5 to 20%. Homogeneous incorporation is the single most important process and application consideration. Due to poor flow properties of the
micropowder it is recommended that the micropowder and matrix material both be at a temperature below 30°C (86°F). However, in the case of thermoplastic blends, the micropowder may be incorporated into the melt. High speed mixers and tumble mixers have proven successful for dry blends, while propeller mixers work well for wet mixtures such as solvents and oils. Glass bead mills should be used for relatively high viscosity mixtures and roll mills for very high viscosity applications, such as lubricating greases and oils.
Supply form Dyneon TF 9207 PTFE is supplied in 25-kg cartons with polyethylene liner or large cartons containing individual bags of 25-kg each.

Storage
Dyneon TF 9207 PTFE can be stored for a relatively long period of time. It should be kept in a clean and dry place at temperatures below 30°C (86°F).

Management systems
Dyneon has achieved ISO 9001 registration for its worldwide locations and ISO 14001 registration for its Gendorf facility located in Germany. Dyneon has achieved A2LA accreditation for its US operations located in Aston, PA. Important Notice: Because conditions of product use are outside Dyneon’s control and vary widely, user must evaluate and determine whether a Dyneon product will be suitable for user’s intended application before using it. The following is made in lieu of all express and implied warranties (including warranties of merchantability and fitness for a particular purpose): If a Dyneon product is proved to be defective, Dyneon’s only obligation, and user’s
only remedy, will be, at Dyneon’s option, to replace the quantity of product shown to be defective when user received it or to refund user’s purchase price. In no event will Dyneon be liable for any direct, indirect, special, incidental, or consequential loss or damage, regardless of legal theory, such as breach of warranty or contract, negligence, or strict liability.

Technical Information and Test Data: Technical information, test data, and advice provided by Dyneon personnel are based on information and tests we believe are reliable and are intended for persons with knowledge and technical skills sufficient to analyze test types and conditions, and to handle and use raw polymers and related compounding ingredients. No license under any Dyneon or third party intellectual rights is granted or implied by virtue of this information.
